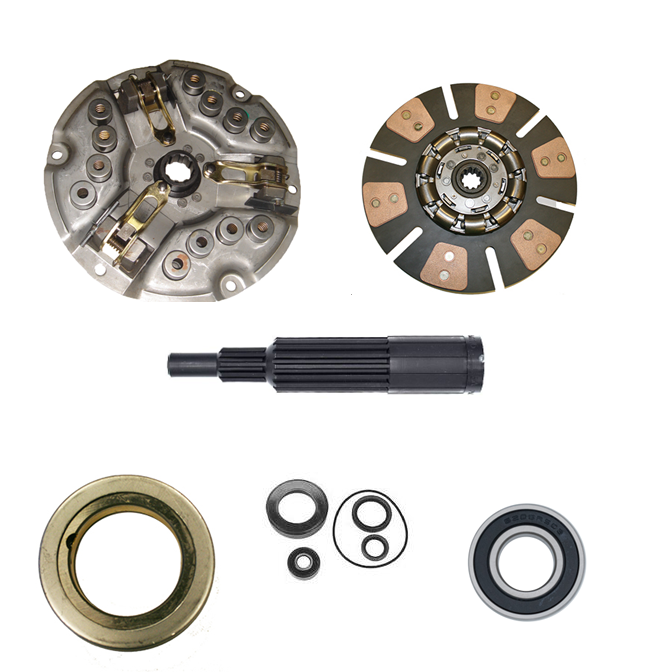

886 International Tractor 12″ Single Stage Clutch Kit Assembly

Description

This Is a New 12’ Single Stage Clutch Kit Assembly

The Kit Comes With

12’ Single Stage Pressure Plate With 3 Lever And 12 Spring

12’ 6 Pad Ceramic Button Clutch Disc with 1-3/16’ 11 Spline Hub

Release Bearing OD 4.154”   ID 2.500’’ Thickness .865’’

Pilot Bearing OD 2.047” ID .787’’ Thickness .590’’

Alignment Tool Large Spline 1-3/4” 17 Tooth Small Spline 1-3/16” 11 Tooth

Pilot Diameter .0787”

Flywheel Step 1.406”
