43-1047 10″ Single Stage Clutch Kit Assembly

Description

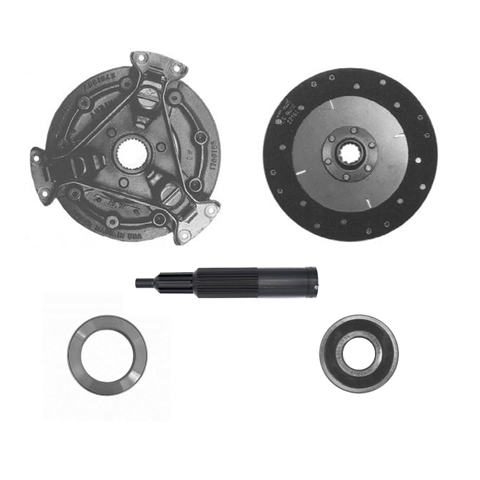

This Is a New 10” Single Stage Clutch Kit Assembly   The Kit Comes With   10” Single Stage Pressure Plate With 3 Levers 1-3/4” 27 Spline Hub 10” Woven Clutch Disc With 1-1/4” 10 Spline Spring Hub  Release Bearing OD 3.750” ID 2.250” Thickness .750” Pilot Bearing OD 1.375″ ID .590″ Thickness .430″ Alignment Tool Large Spline 1-3/4’ X 24 Small Spline 1-1/4” 10 Spline  Pilot Spline Diameter 0.590” Flywheel Step 1.180″
