1640 John Deere Tractor 12-5/8″ Single Stage Clutch Kit Assembly with 1-1/2″ 23 Spline Hub
$795.00
This Is a New 12-5/8” Single Stage Clutch Kit Assembly
The Kit Comes With
12-5/8” Diaphragm Pressure Plate With 1-1/2” 23 Spline Hub
12-5/8” Clutch Disc With 5 Pads 1” 15 Spline Spring Hub
Release Bearing OD 3.670” ID 1.952” Thickness 2.260”
Pilot Bearing OD 1.375” ID .590” Thickness .430”
Alignment Tool Large Spline 1-1/2” 23 Spline
Small Spline 1” 15 Spline
Pilot Diameter 0.591”
Flywheel Step .850”
10 left in stock
Additional information
| Weight | 70 lbs |
|---|---|
| Dimensions | 16 × 16 × 6 in |
Only logged in customers who have purchased this product may leave a review.
Related products
-

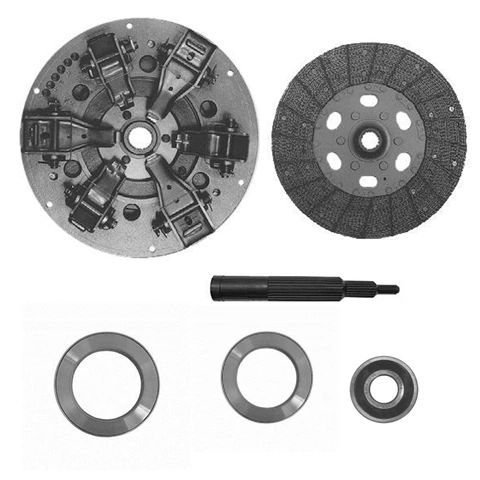

43-3027 12″ Dual Stage Clutch Kit Assembly
